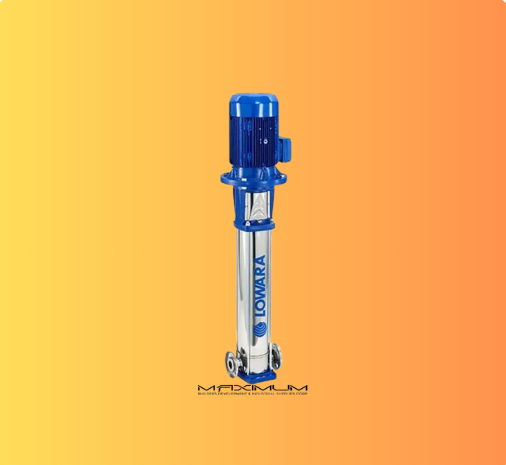

The Lowara e-SV vertical multistage pump is a highly reliable and technologically advanced multipurpose pump. It’s capable of satisfying the needs of a wide variety of users and many different construction designs are available. The e-SV range feature models in eleven sizes with 1-3-5-10-15-22-33-46-66-92-125 m³/h nominal capacities.
Versatile high efficiency multistage pump
Robust, long life design
Available with Hydrovar variable speed pump controller
Certified for use in potable water
Delivery: up to 160 m³/h
Head: up to 330 m
Balanced mechanical seal replaceable without need for pump disassembling (for 10-15-22SV>=5,5kW, 33-46-66-92-125SV)
“O” Ring seat design to allow for simple outer sleeve dis-assembly
Floating for self-alignment replaceable diffuser wear ring (PPS Glass filled techno polymer to withstand chemically corrosive, mechanically aggressive and high temperature liquids)
Reduced impeller axial thrust for longer standard motor bearing life (17,500h)
Hard Material Intermediate bush bearing (Tungsten Carbide/Silicon Carbide) to improve life and ability to withstand heavy duty applications, like boiler feeding
High temperature seal option (180°C max) with low NPSH design, high pressure design (up to 40 Bar), and passivated & electro-polished versions are available upon request.
