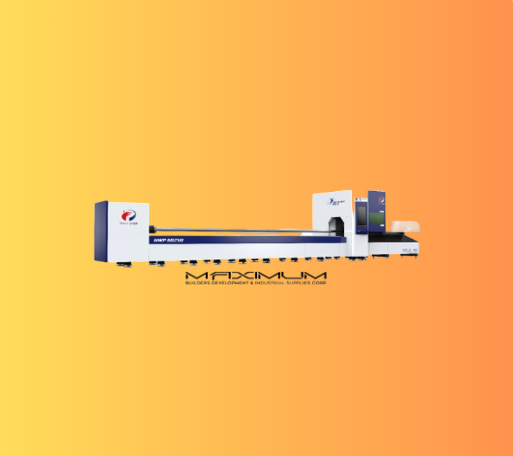

PENTA LASER WPA/WPB
PENTA LASER WPA/WPB
Couldn't load pickup availability
Description
The WPA series laser tube cutting machine is specifically
designed for heavy-duty tube cutting applications. It
features a customized large-mouth, high-load-bearing
side-hanging chuck with a maximum load capacity of 1.2
tons. The machine comes standard with a semiautomatic loading system, which includes a largeclamping-force fixture to ensure precise tube centering
during loading. The loading side is supported by a servocontrolled floating supporter, while the unloading side
utilizes a servo-controlled flat floating supporter. An
optional bevel cutting function is also available.
Features
- Dynamic Performance
The high-strength crossbeam and precision manufacturing process ensure optimal dynamic performance, accuracy, and stability during machine operation. The linear axis can achieve a maximum speed of 90 m/min, while the rotational axis can reach a maximum speed of 100 rpm.
- The Clamping Range of the Chuck
Using a square chuck, the maximum diameter for cutting both round and square tubes is identical. The diameter range for both types of tubes is from 10 mm to 240 mm.
- Servo Support with Buffer Cylinder
Both the loading and unloading ends are equipped with high-sensitivity, servo-driven active supports to ensure cutting stability and enhance accuracy.
- Operation Software
– The latest version of Smart Manager is a European-developed CNC software designed for seamless integration with Italian CNC systems. It features an advanced laser cutting database, enabling real-time adjustment of cutting parameters to achieve optimal cutting quality.
– The new algorithm enables faster response.
– The system supports configuration of up to 15 layers of cutting parameters and 25 layers of perforation methods.
Specification
- Model: WPA 6022; WPB 6025/9025
- Table Travel: 6000mm-9000mm
- A/P axis rotates: N×360°
- Repetitive accuracy of X-axis: ±0.03mm
- Maximum speed of X-axis: 90m/min
- Maximum speed of axis of rotation: 100rpm
- Repetitive accuracy of rotate axis position: ±8arc min
- Pipe diameter range: Φ20-240mm □20×20-240×240mm
- Maximum processing capacity: 35kg/m
- Bevel cutting: NO
- Laser Power Option: 3000-6000W
- Operating system: Smart manager
