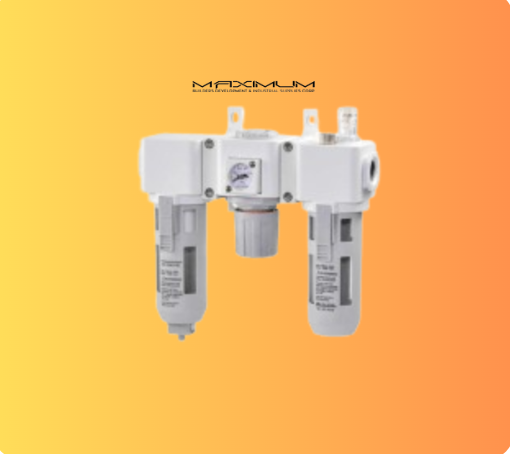

PARKER Double Filter Oil Level Regulator PCB403-04

PRODUCT FEATURES

• Compact Design, saving installation space
• Combined air filter and pressure regulator, lubricating oil supply
• Meets quality standards
• Parker brand (Made in Korea)


SPECIFICATIONS

• Ideal working pressure: 0.05~10 kg/cm²
• Maximum working pressure: 15 kg/cm²
• Limit pressure (destroyed): 15.3 kg/cm²
• Filterable particle size: 5μm (order can filter  40 μm)
• Ren: ½
• Operating temperature: -5～60℃
• Port size: PT 1/2" (21mm)
• Product size: 67.8 x 230 x 244.7 (mm)
• Weight: 1.345 Kg
