OSG AD.ADO
OSG AD.ADO
Regular price
₱0.00 PHP
Regular price
Sale price
₱0.00 PHP
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Description

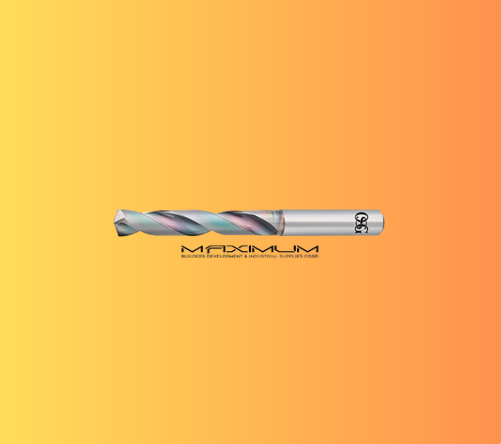

- Carbide Drill
- Superior point strength with low cutting force are achieved to accommodate a wide range of carbide drilling application. EgiAs coating constructed with extreme toughness, high wear and heat resistance characteristics to ensure stable and consistent tool life.
Features
- EgiAs coating for exceptional wear resistance and toughness
*Optimum specifications for every drilling depth - 2D・3D・4D・5D・8D
*Wide flute room facilitates stable chip evacuation
*Wavy point form breaks chip into small manageable pieces - 8D・10D・15D・20D・25D・30D
*M (Middle) margin improves stability in deep-hole applications
Specification
Long tool life can be achieved even at high feed rate with OSG’s EgiAs coating
| Tool | ADO-5D φ10 |
| Work Material | S50C |
| Cutting Speed | 160m/min (5,096min⁻¹) |
| Feed Rate | 1,273mm/min (0.25mm/rev) |
| Depth of Hole | 50mm Blind |
| Coolant | Water-Soluble 9Internal) |
| Machine | Horizontal Machining Center |
