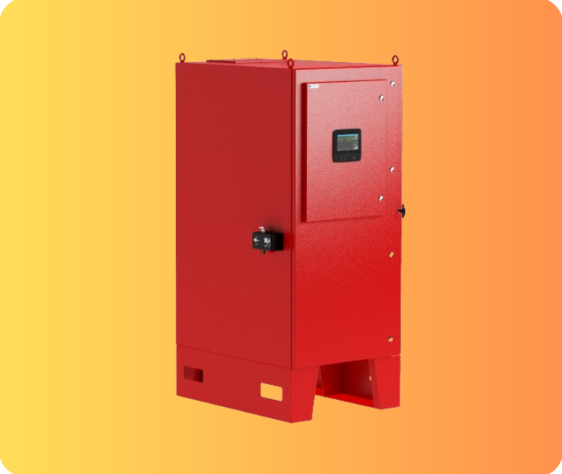

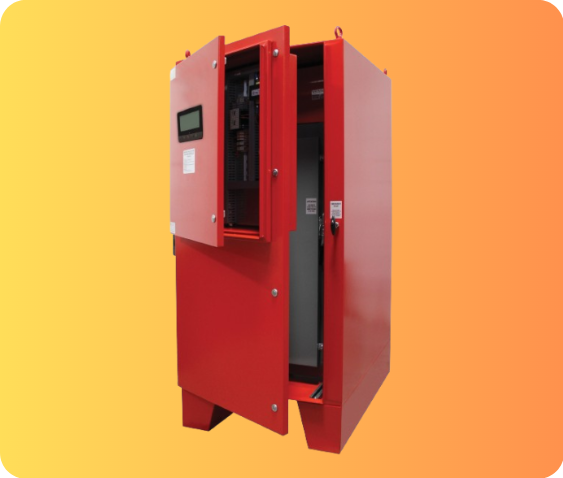

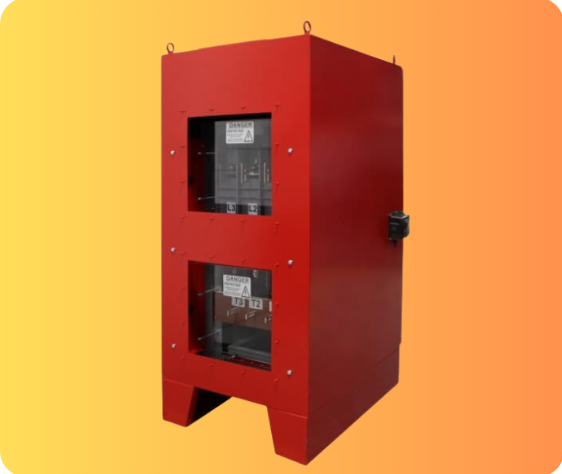

Model MPA – Medium Voltage Fire Pump Controller

Model MPA – Medium Voltage Fire Pump Controller

₱0.00 PHP
₱0.00 PHP
Sale Sold out
Shipping calculated at checkout.

  • Designed to control electric fire pump motors from 2200V to 6900V / 100 to 4500HP
  • Back, top and bottom removable gland plates for power and motor lead connections
  • Equipped with inner protective covers for operator safety

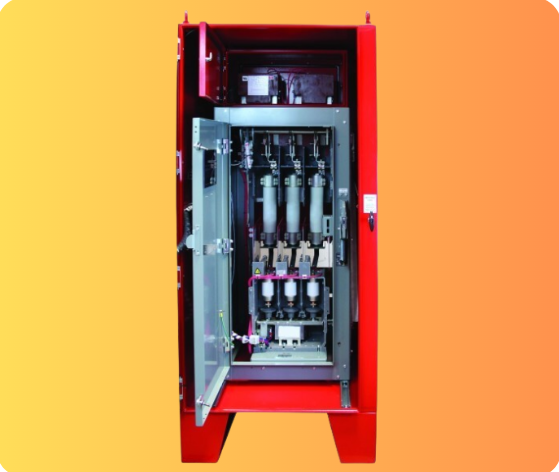

  • Isolated control section from the vacuum contactor / medium voltage assembly

  • Short Circuit Protection
  • Motor Contactor:
    • Vacuum Type
  • Emergency Start Handle
  • Locked Rotor Protector
  • Electrical Readings
    • Voltage & amperage display
  • Pressure & Event recorder

  • Built to NFPA 20
  • Underwriters Laboratory (UL)
    • UL218 – Fire pump controllers
  • FM Global
    • Class 1321/1323
  • Optional: CE Mark – Various EN, IEC & CEE directives and standards

Certificate Certificate Certificate

ViZiTouch 2.1 Operator Interface

  • 7” color touch screen (HMI technology)
  • Embedded microcomputer with software PLC logic
  • Expandable storage
  • Multi-language
  • Upgradable software
