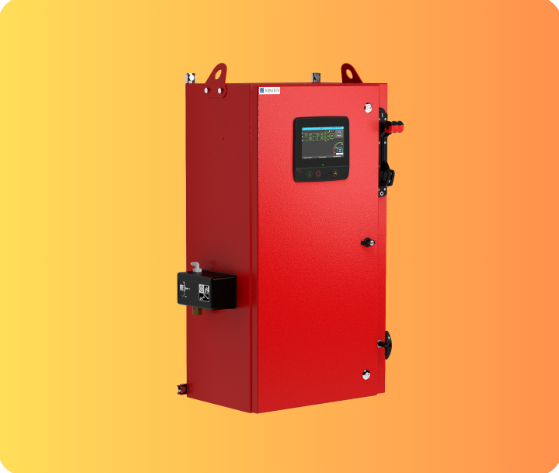

Model GPL – Limited Service Electric Additive (Foam) Pump Controllers

Additive (Foam) Pump Controllers are typically designed for use in buildings where flammable or combustible liquids are present such as aircraft hangers, petro-chemical and hazardous waste facilities.

Standard Features

Limited Service Electric Additive (Foam) Pump Controllers

Controller Model:

• Model GPL – Limited Service Full Voltage Across the Line Start

Choose one of the following configurations:

• A8 – Additive (Foam) pump controller / non pressure actuated without pressure transducer and run test solenoid valve
• A8A – Additive (Foam) pump controller with pressure transducer and run test solenoid valve

Add any of the following options if required:

• D40 – Dump valve circuitry, 24VDC Max2A
• Cx79 – Low foam additive level complete with visual indication and alarm contact (DPDT)
• Cx081 – Provision for proof pressure switch for low additive pressure complete with visual indication and alarm contact. (Proof pressure switch provided by others.)

Standard, Listings, Approvals and Certifications

• Built to NFPA 20
• Underwriters Laboratory (UL)
  • UL218 – Fire pump controllers
  • UL 1008 – Automatic power transfer switches for fire pump controllers
• CE Mark Optional – Various EN, IEC & CEE directives and standards

Certifications
