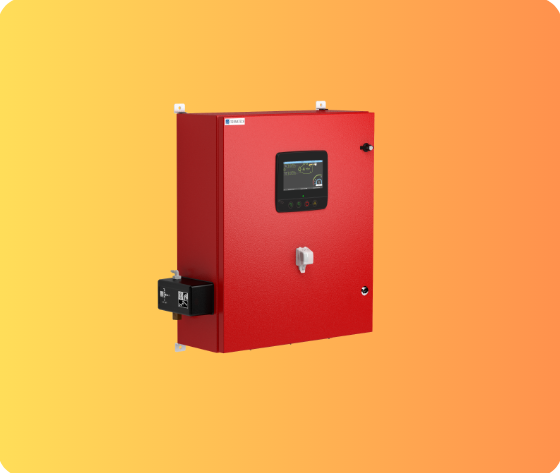

Model GPD – Diesel Additive (Foam) Pump Controller

Additive (Foam) Pump Controllers are typically designed for use in buildings where flammable or combustible liquids are present such as aircraft hangers, petro-chemical and hazardous waste facilities.

Standard Features

• Diesel Additive (Foam) Pump Controllers
• Controller model:
  • Model GPD
• Choose one of the following configurations:
  • C8 – Additive (Foam) pump controller / non pressure actuated without pressure transducer and run test solenoid valve
  • C8A – Additive (Foam) pump controller with pressure transducer and run test solenoid valve
• Add any of the following options if required:
  • C20 – Dump valve circuitry, 24VDC Max2A (Use same voltage as engine batteries)
  • Bx41 – Low foam additive level complete with visual indication and alarm contact (DPDT)
  • BX148 – Provision for proof pressure switch for low additive pressure complete with visual indication and alarm contact. (Proof pressure switch provided by others)

Standard, Listings, Approvals and Certifications

• Built to NFPA 20
• Underwriters Laboratory (UL)
  • UL218 – Fire pump controllers
  • UL 1008 – Automatic power transfer switches for fire pump controllers
• FM Global – Class 1321/1323
• CE Mark – Various EN, IEC & CEE directives and standards
• • Built in Canada or U.A.E = optional
  • Built in Europe = standard

Certifications
