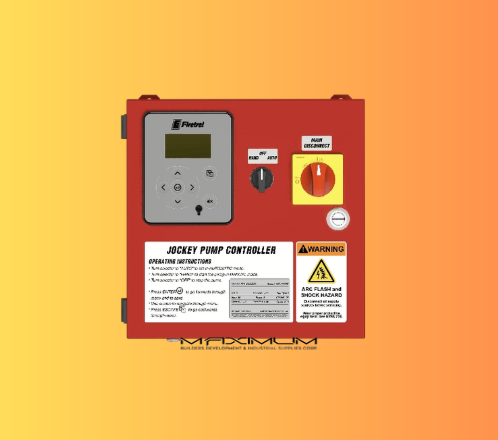

FTA570F Limited Option JPC

The Firetrol FTA570F Limited Option JPC is a full-voltage jockey pump controller designed to maintain system pressure and prevent unnecessary main fire pump operation in fire protection systems. It automatically starts the jockey pump when system pressure drops below set points and ensures reliable pressure control during standby or fire conditions.

The controller features a solid-state pressure transducer with digital display and a Hand-Off-Auto selector switch, providing monitoring of pressure, pump status, and system alarms. It supports minimum run timers, automatic and manual operation, and provides simple interface indicators for pressure and pump operation.

Built with heavy-duty components and compliant with fire protection and industrial control standards, the FTA570F is commonly used in commercial, industrial, and high-rise fire pump installations where dependable jockey pump operation is critical.

Technical Specifications

Starting Method: Across-the-line (Full Voltage Starting)

Motor Rating:

• 110 - 240 V single-phase - up to 10 - 25 HP
• 200 - 600 V three-phase - up to 25 HP

Controller Interface: Hand-Off-Auto selector switch with door-mounted pressure display

Control System: Solid-state pressure-based automatic/ manual jockey pump control

Pressure Monitoring: Pressure transducer with digital display

Electrical Monitoring: Visual LED indicators for pump ON/OFF and pressure status

Data & Communication: Standard panel interface; no advanced logging

Testing & Operation:

• Minimum run timer
• On-delay start timer
• Manual/Automatic/Off operation


Enclosure: NEMA Type 2 (IP22)
