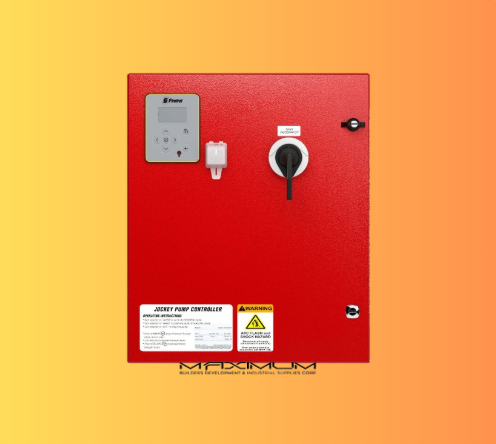

FTA570E Jockey Pump Controller

The Firetrol FTA570E Jockey Pump Controller is a full‑voltage jockey pump controller designed to maintain system pressure and prevent unnecessary main fire pump operation in fire protection systems. It automatically starts the jockey pump when system pressure drops below set points, ensuring reliable pressure control during standby and fire conditions.

The controller features a solid‑state pressure transducer with digital display and a Hand‑Off‑Auto selector switch, providing clear indication of pressure status and pump operation. It supports minimum run timers, automatic and manual operation, and provides visual LED indicators for system status.

Built with heavy‑duty components and compliant with fire protection and industrial control standards, the FTA570E is commonly used in commercial, industrial, and high‑rise facilities where precise jockey pump pressure control is required.

Technical Specifications

Starting Method: Across-the-line (Full Voltage Starting)

Motor Rating:

• 110 - 240 V single-phase - up to 10 - 25 HP
• 200 - 600 V three-phase - up to 25 HP

Controller Interface: Hand‑Off‑Auto selector switch with door‑mounted pressure display

Control System: Solid‑state pressure‑based automatic/manual jockey pump control

Pressure Monitoring: Pressure transducer with digital display

Electrical Monitoring: Visual LED indicators for pump ON/OFF and pressure status

Data & Communication: Standard panel interface; no advanced logging

Testing & Operation:

• Minimum run timer
• On‑delay start timer
• Manual/Automatic/Off operation


Enclosure: NEMA Type 2 (IP22)
