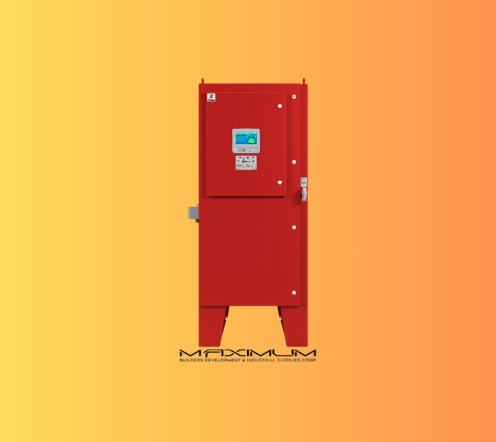

FTA2000 (MarkIII+)

The Firetrol FTA2000 MarkIII+ Medium Voltage Fire Pump Controller is a medium‑voltage electric fire pump controller designed for reliable operation of large electric motor‑driven fire pumps in fire protection systems. It automatically starts the fire pump when a drop in system pressure is detected and ensures continuous operation during fire emergencies.

The controller features a microprocessor‑based Mark III+ platform with an integrated touchscreen interface that provides system monitoring, electrical metering, event logging, and diagnostics. It supports automatic testing, real‑time pressure monitoring, and communication capabilities for building management systems.

Built with heavy‑duty components and compliant with fire protection standards, the controller is commonly used in large commercial and industrial facilities where dependable fire pump performance at medium voltage levels is critical

Technical Specifications

Starting Method: Across‑the‑line (Medium Voltage Full Voltage Starting)

Motor Rating:

• 2200 - 3000 V - up to 1000 HP
• 3000 - 3300 V - up to 1500 HP
• 4000 - 4160 V - up to 2000 HP
• 4800 - 5500 V - up to 2500 HP
• 6000 V - up to 3500 HP
• 6300 - 6900 V - up to 3500 HP
• 7200 V - up to 3500 HP

Controller Interface: Capacitive color touchscreen (Mark III+ HMI)

Control System: Microprocessor / PLC-based controller

Pressure Monitoring: Pressure transducer with digital display

Electrical Monitoring:

• True RMS voltage and current metering

Data & Communication:

• Event and pressure data logging
• USB data export
• Modbus TCP/IP communication capability

Testing & Operation:

• Weekly automatic test timer
• Manual start/stop controls
• Emergency manual run mechanism

Enclosure: NEMA Type 2 (IP22)
