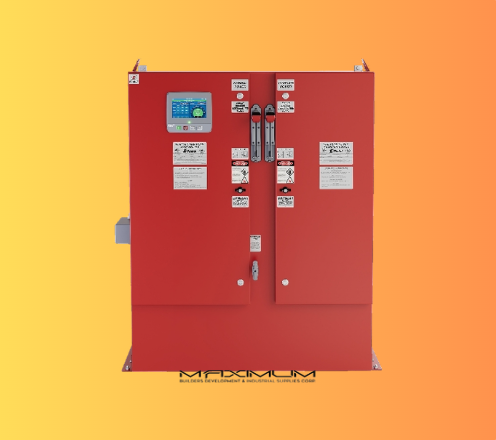

FTA1250 (MarkIII+)

The Firetrol FTA1250 MarkIII+ Fire Pump Controller is a part-winding electric fire pump controller designed for reliable operation of motor-driven fire pumps in fire protection systems. The controller automatically starts the fire pump when a drop in system pressure is detected and ensures continuous pump operation during fire emergencies.

Powered by the Mark III+ microprocessor platform, the controller features a 7-inch touchscreen HMI that provides real-time system monitoring, electrical metering, event logging, and diagnostic information. It also supports automatic weekly testing, pressure monitoring, and communication with building management systems.

The FTA1250 controller is built with heavy-duty industrial components and complies with major fire protection standards, making it suitable for commercial buildings, industrial facilities, hospitals, and high-rise structures where dependable fire pump performance is critical.

Technical Specifications

Starting Method: Part-Winding Starting

Motor Rating:

• 208 V – up to 200 HP
• 220–240 V – up to 250 HP
• 380–415 V – up to 450 HP
• 440–480 V – up to 500 HP
• 600 V – up to 500 HP

Controller Interface: 7-inch color touchscreen (Mark III+ HMI)

Control System: Microprocessor / PLC-based controller

Pressure Monitoring: Digital pressure transducer (up to 500 PSI)

Electrical Monitoring:

• True RMS voltage and current metering
• Real-time electrical data display

Data & Communication:

• Event and pressure data logging
• USB data export
• Modbus TCP/IP communication capability

Testing & Operation:

• Weekly automatic test timer
• Manual start/stop controls
• Emergency manual run mechanism

Enclosure: NEMA Type 2 (IP22)
