FTA1000 (MarkIII+)

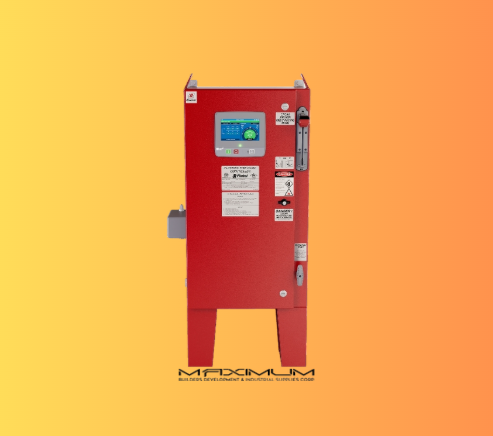

The Firetrol FTA1000 MarkIII+ Fire Pump Controller is a full-voltage electric fire pump controller designed for reliable operation of motor-driven fire pumps in fire protection systems. It automatically starts the fire pump when a drop in system pressure is detected and ensures continuous operation during fire emergencies.

The controller features a microprocessor-based Mark III+ platform with an integrated touchscreen interface that provides system monitoring, electrical metering, event logging, and diagnostics. It supports automatic testing, real-time pressure monitoring, and communication capabilities for building management systems.

Built with heavy-duty components and compliant with fire protection standards, the controller is commonly used in commercial buildings, industrial facilities, and high-rise structures where dependable fire pump operation is critical.

Technical Specifications

Starting Method: Across-the-line (Full Voltage Starting)

Motor Rating:

• 208 V – up to 200 HP
• 220–240 V – up to 250 HP
• 380–415 V – up to 450 HP
• 440–480 V – up to 500 HP
• 600 V – up to 500 HP

Controller Interface: 7-inch color touchscreen (Mark III+ HMI)

Control System: Microprocessor / PLC-based controller

Pressure Monitoring: Pressure transducer with digital display

Electrical Monitoring:

• True RMS voltage and current metering
• Real-time electrical data display

Data & Communication:

• Event and pressure data logging
• USB data export
• Modbus TCP/IP communication capability

Testing & Operation:

• Weekly automatic test timer
• Manual start/stop controls
• Emergency manual run mechanism

Enclosure: NEMA Type 2 (IP22)
