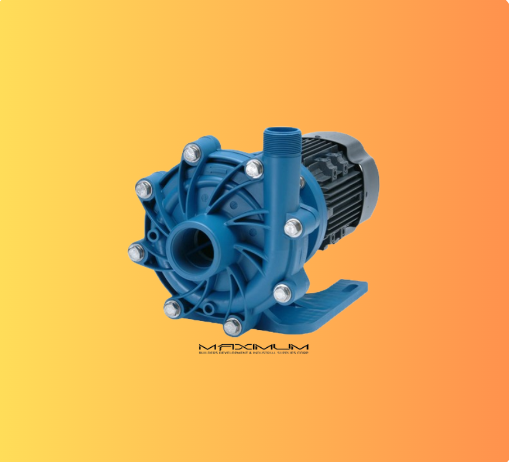

Finish Thompson End Suction, Magnetic drive DB Series

• Introducing the DB Series magnetic drive pump—the new standard for high hydraulic efficiency and corrosive fluid handling. With design-aided magnetic flux and computational fluid dynamics technology, the DB Series packs all the high-pressure, fluid-handling punch you’d expect from a Finish Thompson pump.
• Close-coupled design
• Polypropylene or PVDF construction
• Neodymium magnets on every model
• Replaceable shaft and bushing
• ISO 1940 G2.5 balancing
• Mounts to NEMA and IEC motor frames
• Easy Set measurement-free outer drive
• Mounts to motor without disassembly
• Back pullout design
• CE certified
• ATEX available
• Applications: Chemical manufacturing, Metal plating/working, Wastewater treatment, Electronics manufacturing, OEM equipment supply, DI & High purity water, Fume scrubbing, Mining, Paper mills, Printing, Pharmaceutical processing, Chillers, General pump applications
• Up to 70% operating efficiency
• High working pressure up to 90 psi
• Maximum viscosity: DB - over 150 cP
• Maximum temperature: Polypropylene - 180° F (82° C) PVDF - 220° F (104° C)
