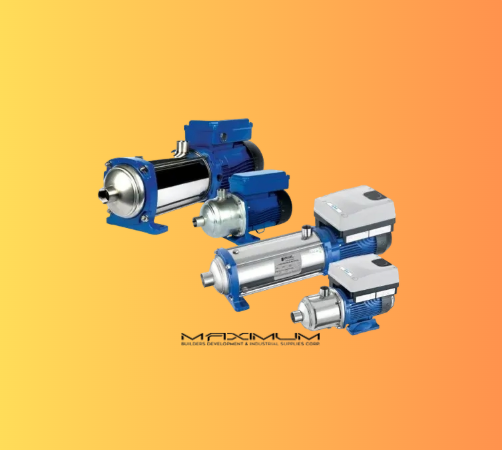

e-HM/e-HME Multistage Pumps

Xylem's Goulds Water Technology e-HM series stainless steel horizontal multistage pumps deliver industry-leading efficiency for commercial and industrial uses like washing/cleaning, food/beverage processing, refrigeration, water treatment, and OEM applications built on proven e-SV hydraulics with high-efficiency motors for superior performance. The e-HME Smart Pump enhances this with an ultra-premium IE5 permanent magnet motor featuring built-in protection, monitoring, and plug-and-play controls, offering versatile solutions across five ranges for residential/commercial pressure boosting, industrial systems, HVAC, and irrigation.

Product Features

• Up to 15% more efficient
• Powerful versatility
• Compact, durable design
• e-HME with Xylem Smart Motor

e-HM Pumps:

• Up to 15% more efficient. The e-HM is based on the innovative platform and market-proven hydraulics of our e-SV vertical multistage pumps, delivering energy efficiency that outperforms the competition by up to 15%.
• Powerful versatility. The e-HM can be configured for a wide range of food and beverage applications, including support for flows of 2+ gallons. With two designs, six models and modular construction, it’s completely customizable.
• Compact, durable design. The smaller motor and space-saving design lets the e-HM fit where you need it. The standard balanced impeller reduces axial thrust 40%, extending motor bearing life. And a 20% thicker pump body enhances durability, increasing reliability.
• More performance for less cost. The e-HM is a high-performance pump with full pressure-boosting capabilities—using significantly less energy. Do more while spending less.

e-HME Smart Pumps:

• Xylem Smart Motor. The e-HME features the Xylem Smart Motor an “ultra-premium” IE5 permanent, magnet motor, providing efficiency well above a standard IE3 NEMA premium efficient asynchronous motor.
  • includes a wide range of monitoring, control and safety features right out of the box with no need to configure.
  • can operate single or multi-pump systems of up to three pumps, with no need for an external control panel or PLC.
  • exceeds hydraulic performance of fixed speed versions in a more compact design.
• Built to perform. Thick stainless-steel casing, high-quality bearings, and stainless-steel inner components minimize noise and guarantee long service life.
• NSF certified. Certified for drinking water use (certified to the NSF/ANSI 61 Drinking Water System Components Standard).
• Range of options. Options include AISI 304 or 316 pump body and inner components, electropolished and passivated, and mechanical seal or O-rings.
