ASB7
ASB7
Regular price
₱0.00 PHP
Regular price
Sale price
₱0.00 PHP
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability

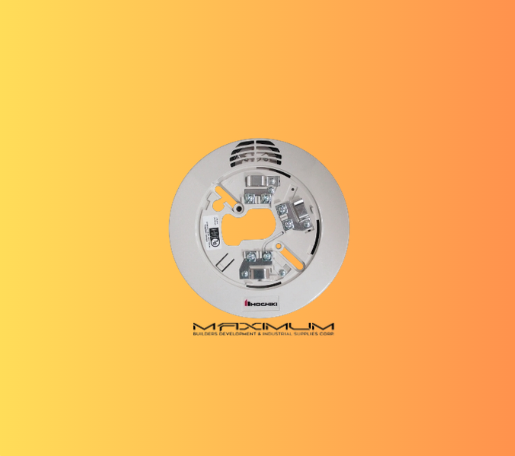

The ASB7 Digital analog Sounder Base is designed for use with Hochiki digital
analog sensors ALO-V, ALG-V, ALK-V, ALN-V, ATJ-EA, ACC-V, ACD-V, ACA
V, AIE-EA, and ATG-EA. Each addressable base is to be connected to a
Hochiki America Corporation DCP Signaling Line Circuit (SLC). The ASB7
provides an audible alarm in the immediate vicinity. Typical applications are
hotels, apartments, and hospitals.
• Programmable evacuation codes - Continuous, March, ANSI Temporal 3 patterns
• Base learns the sensor address and automatically sets base address (128-254)
• Up to 127 sensors and 127 ASB7s can be used on one SLC loop
• Can be alarmed or reset by zone or by individual address
• ASB7 SLC loop wire resistance = 50 ohms Max. (total SLC wire run length)
• High sound pressure level (85dB SPL at 10 feet)
• Base learns the sensor address and automatically sets base address (128-254)
• Up to 127 sensors and 127 ASB7s can be used on one SLC loop
• Can be alarmed or reset by zone or by individual address
• ASB7 SLC loop wire resistance = 50 ohms Max. (total SLC wire run length)
• High sound pressure level (85dB SPL at 10 feet)
