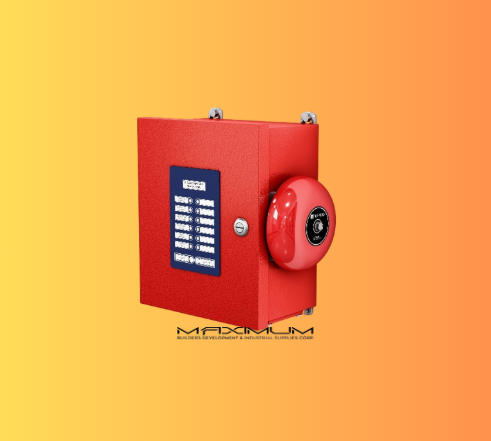

APx Series – Remote Alarm Panels

• The APx Series remote alarm panels are installed to provide annunciation of alarm conditions monitored at the fire pump controller.
• The NFPA20 standard requires that the annunciation of these alarm conditions be monitored at a point of constant attendance if the pump room is not constantly attended.

Standard Features

All Models

• Bottom entry gland plate
• LED type visual indication
• Quantity 12 N.O inputs (Max. 8A – 120V.AC)
• Quantity 12 N.O or N.C outputs (SPST – Max. 8A – 120V.AC)
• 4” Alarm bell
• Silence pushbutton
• Lamp test pushbutton

Standards, Listings, Approvals and Certifications

All Models

• UL508A – Industrial Pump Controllers
• CE Mark
  • Tornatech Inc Laval, Canada = Optional
  • Tornatech Europe SPRL Wavre, Belgium = Standard
  • Tornatech FZE Dubai, UAE = Optional
