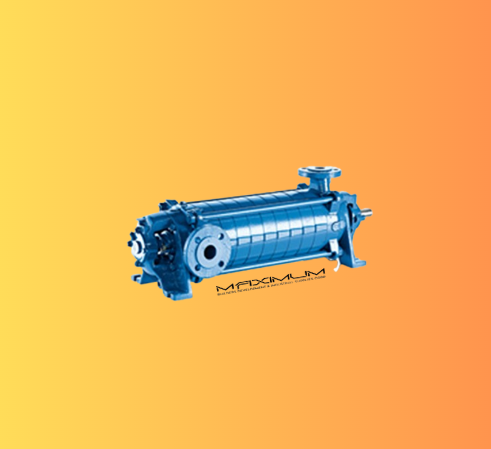

Andritz Horizontal Multistage Pump HP Series

• ANDRITZ multi-stage high-pressure pumps from the HP series are used for various industrial applications such as water supply, irrigation, for hot and cold water circulation, firefighting, boiler feed and pressure boosting installations. They are suitable for transporting all clean or slightly dirty non-corrosive liquids up to a viscosity of 150 mm²/s (cSt). Under difficult suction conditions (low NPSH-available), the pump can be provided with an axial inlet for cavitation-reducing flow entry pattern into the first stage impeller.
• Design: Multi-stage, high-pressure
• Head up to 630m
• Flow rate up to 850m³/h
• Pressure up to 63 bar
• Temperature up to 140° C
• Speed up to 3,600 rpm
• Efficiency up to 90%
• Numerous hydraulic units per model size guarantee a design at the optimal operating point
• High efficiencies owing to optimized hydraulics
• Optimal adaptability to the medium to be pumped
• All wearing parts are renewable without additional work on the casing parts
