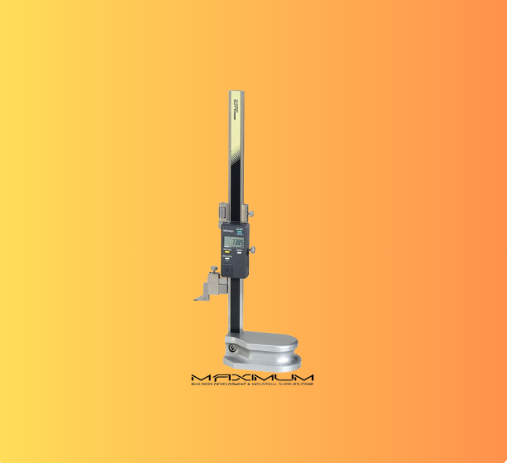

ABSOLUTE Digimatic Height Gage - Series 570 (Standard model)

• Series 570 – Standard model

• ABS and INC measurement modes allow efficient operation.
• Rigid structure makes instrument suitable for use in severe work environments.
• The +/- measurement function widens application range. Allows integration into statistical process control and measurement systems.
• Battery: SR44 (1pc), 938882. For initial operational checks (standard accessory)
• Battery life is 5,000 hours under normal use.
• Carbide-tipped scriber (900173 for 570-227) and 244, and 905200 for 570-230 and 248) is provided as a standard accessory. (Standard accessory: scriber clamp 901338 for 570-227 and 244, and 05GZA033 for 570-230 and 248)
• When a dial indicator or test indicator is used with 570-227, the dedicated holding bar ( 952639, overall length 50 mm) is recommended for use. However, instrumental error may be larger because the measurement point is further from the beam.
• For precision Black Granite Surface Plates
