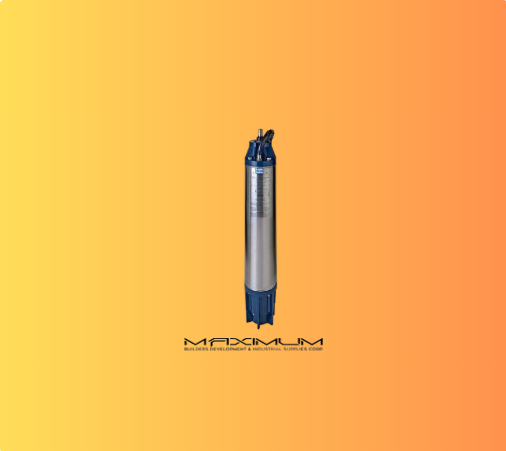

8x6-Inch Encapsulated Submersible Motor

• Full 3525 rpm design point for superior pump head & flow yield
• Winding encapsulated in anti-tracking resin
• Hermetically-sealed stator area
• Kingsbury-type water lubricated thrust bearing
• FES91 exclusive water-based bearing lubrication
• Water Bloc™ removable lead connection
• Double flanged design for ease of handling and pump mounting
• Spline shaft for maximum shaft and coupling contact
• Copper bar rotor provides consistent design performance
• Pressure equalizing diaphragm
• Subtrol heat sensors standard on all 8-inch encapsulated 30 °C motors
• 6-inch pump mounting surface meets NEMA standards to accommodate any 6-inch pump
• NSF/ANSI 61 Certified for select models

Applications:

• These motors are built for vertical operation in 8-inch diameter or larger water wells. The 6-inch pump mounting surface meets NEMA standards to accommodate any 6-inch pump. Temperature and time rating are continuous in 30°C (86 °F) water at 0.5 ft./sec. flow past the motor. Rotation is electrically reversible.
