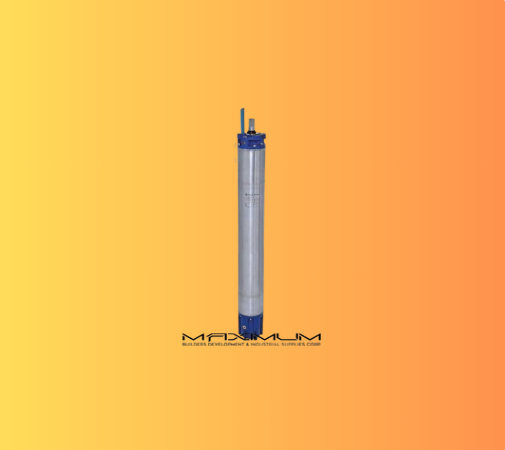

8-Inch Rewindable MagForce™ High Efficiency Motor

Get the streamlined solution needed for pumping power at maximum efficiency: MagForce™ High Efficiency Motors are engineered for high performance, simple startup, and incredible long-term cost savings. Owners and operators benefit from electrical cost savings as a result of a 93% efficiency rating in the motor for an investment payback of fewer than two years in typical duty rate systems*. *Results based on field trial data

Motor Specifications

• Sand Fighter® models are equipped with Franklin’s robust Sand Fighter sealing system for durability against sand or other abrasives.
• Max 3600 rpm (4 pole, 120 Hz); Nominal 3450 rpm (4 pole, 115 Hz) Maximum temperature winding wire NEMA class 200
• Standard rewindable motor with PE2/PA winding insulation
• 8” double flange NEMA mounting design
• All motors with factory installed leads, motor lead length: 19 ft
• Stainless steel shell
• Liquid lubricated radial bearings and high capacity Kingsbury type 10,000 lb thrust bearing for 100% maintenance-free operation
• Pressure-equalizing diaphragm, spring pre-loaded
• Sand slinger
• Nominal ambient temperature: 86°F with 1.5 ft/s cooling flow
• Stainless steel splined shaft
• Max. storage temperature: 5°F to 140°F
• System Supply Voltage: 460/575 V (120 Hz)
• Voltage Tolerance: ± 10 % UN
• Frequency of starts: 10 starts/hour (with min. 3 minutes resting time), equally distributed
• Motor ingress protection IP68
• NSF/ANSI 61 Certified
• Motor installation orientation: Vertical / horizontal (shaft end heightened)
• Rotation counterclockwise facing shaft end (rotation reversible)

Features & Benefits

• Powered by MagForce High Efficiency Motor with up to 93% efficiency rating that is 5-6 points (7%) greater than standard induction motor construction. Typical duty rate systems can have a payback* of 1 to 2 years.
• Up to 14% energy savings* compared to traditional induction motors.
• Available motor options cover a wide range of pump horsepower needs (up to 175 hp) with fewer SKUs to manage.
• Lighter and easier to handle than standard induction motors.
• When optimized and paired with a Franklin Electric variable frequency drive, expect easy startups and reliable protection for any project.
• Rely on components from a single trusted source for the ultimate in operational compatibility and optimized operation.
• Comes fully supported by the industry’s leading Technical Support professionals and Field Service Engineers.
• *Field trial data.

Ideal for Long-run Applications

• Groundwater remediation
• Drainage water level control
• Municipal/Utility water supply
• Construction site dewatering
• High volume and industrial livestock operations
• Mine site dewatering and tank level control
• Well supply geothermal HVAC systems
