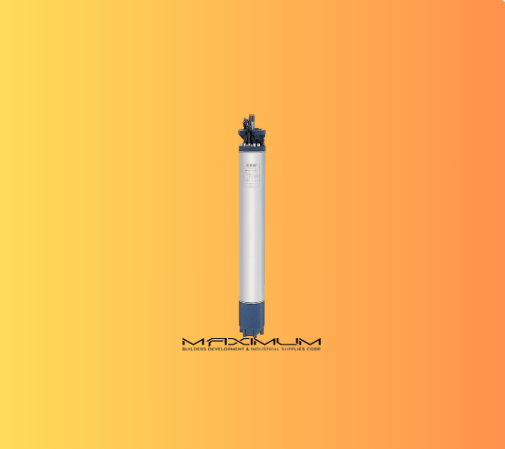

8-Inch Encapsulated High-Temp Motor

The 8-inch High-Temp Motor utilizes a distinctive premium encapsulation process and water-soluble coolant to allow dependable, continuous operation in 8" diameter or larger water wells with water temperatures of up to 75 ºC (provided minimum allowable flow rates past the motor are maintained). This submersible motor is powered by design and can handle thrust loads 25% higher than a standard motor without oil. Its superior construction comes with water-lubricated radial and thrust bearings to benefit from a maintenance-free operation.

Features & Benefits

• Up to 167 ºF (75 ºC) ambient temperature
• 25% increase in upthrust capability at 30 ºC
• 25% increase in downthrust capability at 30 ºC
• Wet Well, Reservoir, Low Flow approved in 14” diameter or larger wells with ambient water
  up to 87 ºF (30 ºC)
• High temperature leads
• Hermetically sealed stator
• Innovative high temperature winding encapsulation system
• FE water soluble, high temperature bearing lubrication
• Double-flange NEMA mounting for ease of handling and pump mounting
• Stainless steel splined shaft for maximum shaft/coupling contact
• Full 3525 RPM 60 Hz design point for superior pump performance
• SAND FIGHTER™ Sealing System
• Franklin Electric’s exclusive Water-Bloc™ lead connection
• 316 SS, Y-∆ and non-vertical designs available - consult factory
