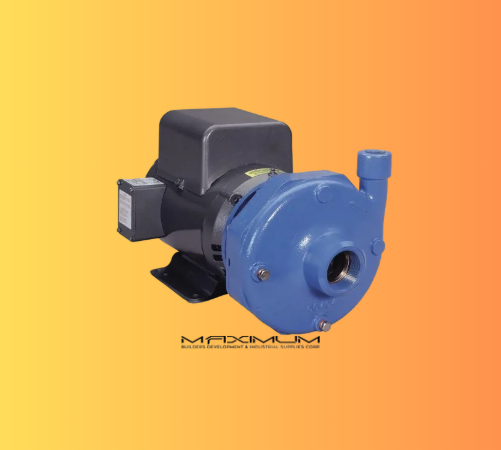

3656/3756 S-Group Cast Iron & Bronze Pumps

The 3656 and 3756 S-Group pumps from Goulds Water Technology have been designed with technical benefits to meet the needs of users in a variety of water supply, recirculation, and cooling applications.

Product Features

• The model 3656 offers close coupled design for space saving and simplified maintenance.
• The model 3756 offers a bearing frame mounted design for flexibility of installation and drive arrangements.
• Back pull-out to reduce maintenance down time.
• Standard Type 21 mechanical seal for both reliability and availability. Carbon/ceramic/ BUNA standard, with other faces and elastomers available.
• 3656/3756 available in all iron, bronze fitted or all bronze construction for application versatility.
• Replaceable wearing components include stainless steel shaft sleeve and casing and hub wear rings to maintain peak efficiency.
• Packed box sealing is also available as an option.
• Enclosed impeller design, dynamic balancing and renewable wear rings reduce losses affecting performance and pump life.
• Suction and discharge pipe connections are NPT threaded, except 3 x 4 7 which has 125 lb. ANSI flat faced flanges.
• Rigid cast iron motor adapter provides support and registered fits maintain positive unit alignment.
• Standard NEMA motor frame, JM or JP shaft extension, C-face mounting, single phase or three phase, 3500 or 1750 RPM. Open drip proof and totally enclosed fan cooled.

Applications:
Booster service
Spraying systems
Irrigation
Water circulation
Liquid transfer
General purpose pumping
