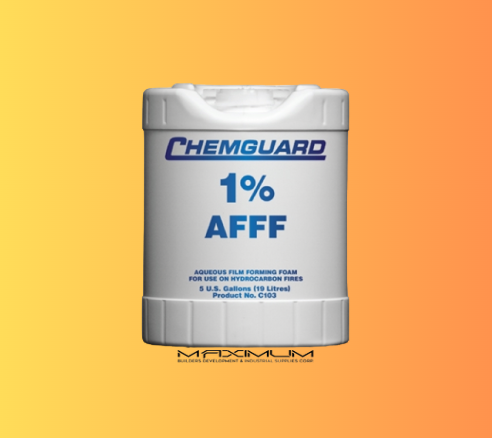

1% AFFF Foam Concentrate

Description

Chemguard 1% AFFF is a specially formulated, synthetic, aqueous film forming foam concentrate. A vapor suppressing aqueous film is formed by the foam solution draining from the expanded foam blanket. It is intended for use at a proportioning rate of 1% (1 part AFFF concentrate to 99 parts water) on Class B hydrocarbon type fuels such as gasoline, kerosene, diesel, etc. Chemguard 1% AFFF is not intended for use on fuels, which are polar solvent/water miscible such as alcohols, ketones, esters, etc.

FEATURES

• U.L. Listed, Foam Liquid Concentrates
• U.L. recommended application rate on hydrocarbon type fuels is .10/gpm ft².
• FM Approved
• Suitable for use with either fresh or salt water
• Excellent wetting characteristics when used in combating Class A fuel type fires
• Suitable for use with both air-aspirating foam and standard water fog nozzles
• Suitable for use with deluge or closed head foam water sprinkler systems
• If inadvertently frozen, thawing will render product completely serviceable again
• Suitable for use with carbon steel, fiberglass, polyethylene or stainless steel. Chemguard 1% AFFF is not compatible with galvanized pipe or fittings in an undiluted form.
• Suitable for use with dry chemical extinguishing agents.

PROPORTIONING

• Fixed or portable in-line educators
• In-line balanced pressure and pump pressure proportioning skid
• Bladder tank balanced pressure proportioning system
• Around the pump proportioners
• Handline, air-aspirating nozzles with fixed eductor pickup tube

DISCHARGE DEVICES

• Foam Chambers
• Air-aspirating and non air-aspirating sprinkler heads or spray nozzles
• Standard water fog nozzles for handlines and monitors
• Air-aspirating foam nozzles
• Foam makers for use with either Floating Roof storage tanks or Dike/Bund protection systems
• High back pressure foam makers for sub-surface base injection system (hydrocarbon type fuels only)

APPLICATIONS

• Crash Fire Rescue
• Storage tanks(non-polar solvent type fuels only)
• Truck/Rail loading or unloading facilities
• Processing/Storage facilities
• Docks/Marine tankers
• Flammable liquid containment areas
• Mobile equipment

FOAM PROPERTIES

Aspirating type discharge devices typically generate expansion ratios between 6-10 to 1 when 1% AFFF is mixed with water at the correct ratio. Non-aspirating type devices will typically generate expansion ratios of between 2-4 to 1. Expansion ratios are dictated by the type of discharge device, flow rate and discharge pressure.

TYPICAL PROPERTIES AT 77ºF (25ºC)
