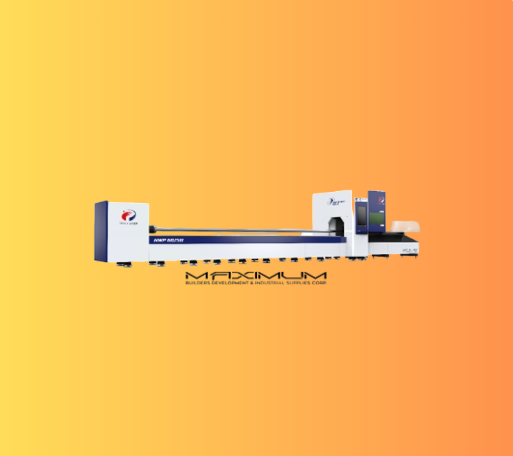

PENTA LASER WPA/WPB

Description

The WPA series laser tube cutting machine is specifically
designed for heavy-duty tube cutting applications. It
features a customized large-mouth, high-load-bearing
side-hanging chuck with a maximum load capacity of 1.2
tons. The machine comes standard with a semiautomatic loading system, which includes a largeclamping-force fixture to ensure precise tube centering
during loading. The loading side is supported by a servocontrolled floating supporter, while the unloading side
utilizes a servo-controlled flat floating supporter. An
optional bevel cutting function is also available.



Features

  • Dynamic Performance

The high-strength crossbeam and precision manufacturing process ensure optimal dynamic performance, accuracy, and stability during machine operation. The linear axis can achieve a maximum speed of 90 m/min, while the rotational axis can reach a maximum speed of 100 rpm.

  • The Clamping Range of the Chuck

Using a square chuck, the maximum diameter for cutting both round and square tubes is identical. The diameter range for both types of tubes is from 10 mm to 240 mm.

  • Servo Support with Buffer Cylinder

Both the loading and unloading ends are equipped with high-sensitivity, servo-driven active supports to ensure cutting stability and enhance accuracy.

  • Operation Software

– The latest version of Smart Manager is a European-developed CNC software designed for seamless integration with Italian CNC systems. It features an advanced laser cutting database, enabling real-time adjustment of cutting parameters to achieve optimal cutting quality.

– The new algorithm enables faster response.

– The system supports configuration of up to 15 layers of cutting parameters and 25 layers of perforation methods.



Specification

  • Model: WPA 6022; WPB 6025/9025
  • Table Travel: 6000mm-9000mm
  • A/P axis rotates: N×360°
  • Repetitive accuracy of X-axis: ±0.03mm
  • Maximum speed of X-axis: 90m/min
  • Maximum speed of axis of rotation: 100rpm
  • Repetitive accuracy of rotate axis position: ±8arc min
  • Pipe diameter range: Φ20-240mm □20×20-240×240mm
  • Maximum processing capacity: 35kg/m
  • Bevel cutting: NO
  • Laser Power Option: 3000-6000W
  • Operating system: Smart manager
