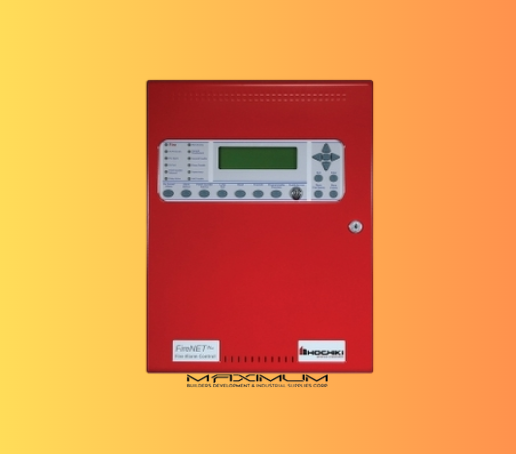

The FireNET™ Plus 1127 Series

The FireNET™ Plus 1127 series control panel is an intelligent addressable fire
alarm panel with options containing 1 or 2 SLC loops, a Digital Alarm
Communicator/ Transmitter (DACT), and an RS-485 bus for network
communication. Each SLC loop supports 127 devices of any combination
(sensors or modules), and 127 analog sounder bases, for a possible total of
254 points per loop.

• Intelligent design using Hochiki’s advanced DCP protocol for fast communication
• Up to 127 sensors & modules, plus 127 analog sounder bases, for a total of 254 points
possible per loop
• Uses standard wire, no-shielded or twisted pair required on SLC loops
• Integrated digital alarm communicator (DACT) with Contact ID and SIA reporting formats
• Programmable sensitivity levels by device
• Alarm Verification feature
• Automatic daily calibration & drift compensation routine
• Large 8-line x 40-character LCD display (320 char.)
• 1 or 2 loop (option)
• RS-485 bus for panel network (option)
• Built-in RS-232 interface for programming via a PC
• 3 on board programmable Form C relays rated at 1 amp at 30VDC
• 2 auxiliary power outputs, each rated 360mA at 24VDC
• Loop Explorer Windows® configuration utility
