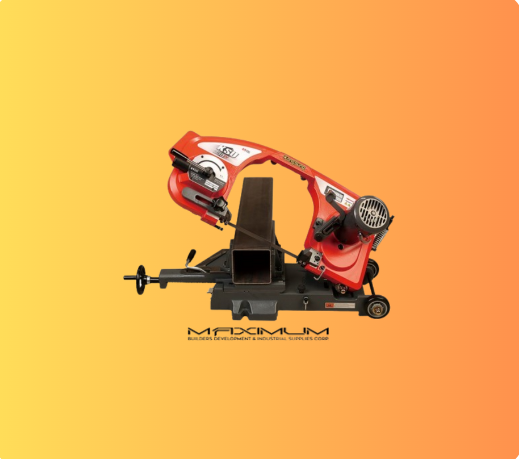

KONGSUNG Bandsaw KSU-230FV

PRODUCT FEATURES:

• Quick vice can bind the material fast and accurately
• By fixing the location differently according to cut material size, the material can be bound stably to improve cutting stability and precision.
• Various angles from 0° to 45° for cutting are available.
• Adoption of the guide arm improves cutting precision
• Adjustment of the one touch tension facilitates saw blade tension adjustment and saw blade replacement
• 3 step cutting load control is possible depending on the material and thickness of the cut material
• Usage : Steel pipe, water-supply pipe, lining steel pipe, cable pipe, PVC pipe, resin pipe, cast iron pope, stainless steel pipe, steel material, pipe, round bar, aluminum, etc.

SPECIFICATION

• Model Name: KSU-230FV
• Vice Type : Flat vice
• Cutting Capacity (90°) : Ø 230mm / □ 175mm
• Cutting Capacity (45°) : Ø 115mm / □ 125mm
• Motor: Single-phase, Induction Motor, 300W, 60Hz
• Blade Size : 16 x 0.65 x 1,850mm
• Blade Speed : 48mpm
• Dimension: (L) 1,050 x (W) 400 x (H) 500mm
• Weight: 64.5Kg
