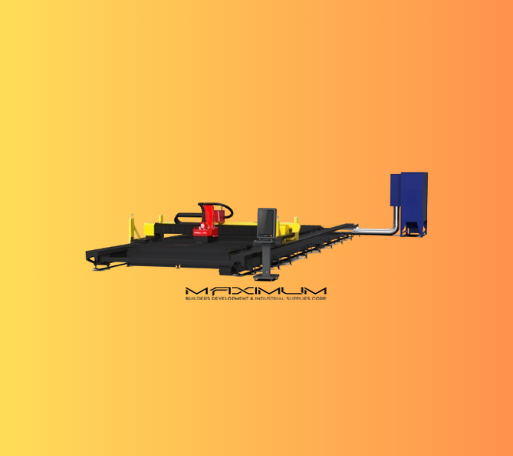

PENTA LASER BULL V

Features

• Dynamic Performance

The high-strength crossbeam and precision manufacturing process guarantee the dynamic performance, accuracy, and stability of the machine while it is operating. The maximum speed of the linear axis can attain 110 meters per minute, and the acceleration can reach between 0.8 and 1.1 G. It should be noted that the acceleration diminishes as the format width increases.

• Dust Removal System

There is a blowing device installed on the left side of the bed, which works with the exhaust fan on the right side to blow and suck out the smoke and dust generated by cutting, creating a clean working environment for you.

• Modular Bed

It adopts a 12+N segmented spliced bed structure, and the format can be customized according to customers’ needs.

• Operation Software

– The latest version of Smart Manager is a European-developed CNC software designed for seamless integration with Italian CNC systems. It features an advanced laser cutting database, enabling real-time adjustment of cutting parameters to achieve optimal cutting quality.

– The new algorithm enables faster response.

– The system supports configuration of up to 15 layers of cutting parameters and 25 layers of perforation methods.

• Bevel Cutting

The BOLT series laser cutting machine can achieve 0-45° bevel cutting and can process V-shaped, X-shaped, Y-shaped and other types of bevels.
