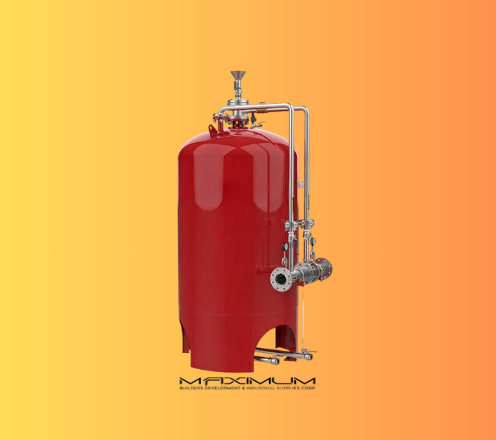

Fire Fighting Foam Tank Bladder

The Vertical Foam Bladder Tank System, used with ratio controllers, forms a balanced pressure proportioning system that mixes water and firefighting foam to produce an effective extinguishing medium. The bladder tank technology maintains a consistent water/foam ratio by automatically compensating for changes in flow and pressure, making it well suited for sprinkler systems and other applications with variable and unpredictable operating conditions.



Features:
  •   Flange Standard of Proportioner: ANSI / BS4504 / GB;
  •   Body Material: Carbon Steel;
  •   Bladder Material: Rubber;
  •   Proportioner :SS304 Stainless Steel;
  •   Ball Valve: BSS304 Stainless Steel;
  •   Safety Valve: SS304 Stainless Steel ;
  •   Piping System: SS304 Stainless Steel
  •   Surface Finishing : Painting.



Specification:

  • Capacity: 200 - 8000 L
  • Foam Ratio: 3% / 6%
  • Working Pressure: 0.6 - 1.2 Mpa
  • Flow Rate: 4 - 64 LPS
  • Type: Vertical
